| Brand Name : | Johnbull |
| Model Number : | 306S-8 |
| Certification : | EPA,ISO9001 |
| Price : | USD10000-USD20000 |
| Payment Terms : | T/T,Western Union,L/C at sight |
| Supply Ability : | 300 sets/Month |
| Delivery Time : | 8-10 days after receipt of deposit |

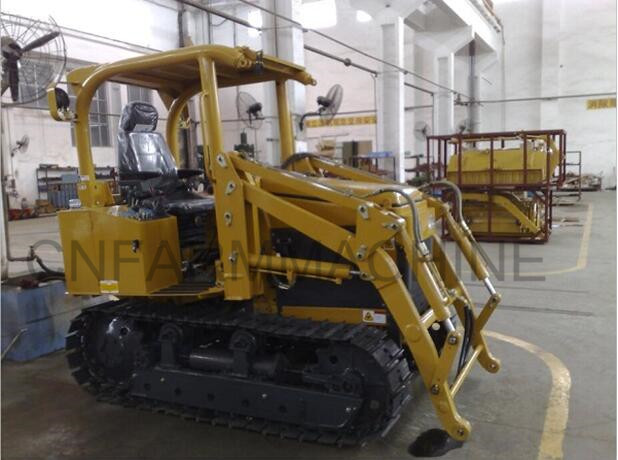

Cheap Chinese Farm Machiney Mini Bulldozer with 4-in-1Front Loader
Spec of Mini Bulldozer:
| Model: | 306S-8 |
| Brand | Johnbull |
| Warranty | 12 months |
| Product Style | Mini bulldozer |
| Machine Weight | 2830 kg |
| Overall Length | 2960mm(116.54in.) |
| Overall Width | 1450mm(64.5 inch) |
| Overall Height | 2230mm(87.8 inch) |
| Engine | Diesel 4 cyclinders,4 stroke |
| water cooled | |
| Power | 35HP |
| Certificate | EPA IV |
| Caterpillar width | 230mm |
| Pitch | 109mm |
| Blade Size | 1638.3x673mm(64 1/2 x 26 1/2in.) |
| Max. Lifting height | 498mm(19.625in.) |
| Digging depth | 80mm(3 1/8") |
| Ground clearance | 240mm(9.45in.) |
| Max. rpm | 2350rpm |
| Fuel Type | Diesel |
| Brake | Band brake, pedal control |
| Speed: | 8 forward, 2 reverse |
| PTO speed(rpm) | 540/720 |
| Hitch Type | Category 1 |
| Lift Capacity (lbs.) | 1,650 |
| Fuel Capacity (gal.) | 7.4 |
| Packing Size: | 2250×1450×2230mm(blade off) 2960x1550x2285mm (complete machine) |
Spec of 4-in-1 Front Loader:
4-in-1 front loader( extended undercarriage frame) | |
| Rated loading capacity | 550KG |
| Volume of the backet | 0.3m³ |
| Bucket dump height | 2200mm |
| Dumping distance | 550mm |
| bucket lifting angle | 45 ° |
| bucket tilt angle | 46 ° |
| bucket deep | 140 mm |
| working pressure | 16MPa |
| Loader Lifting time | 7s |
| Loader descend time | <4s |
FAQ:
1.Can I buy 1 unit for self use?
Yes. We can supply one unit.
2.How you would send to us in other countries.
We would send by sea. For 1 unit in LCL container. For 4 units, we
can put them
in a 20'fcl container.
3.What is the delivery time?
Delivery time is within 20-30 days after order confirmation.
4.What is your payment terms?
Telegraphic transfer to our company account.
5.What is your warranty of goods?
1 years after receipt of goods.
6.What about after-sales service?
We will supply some free spare parts free to charge with machine.
And you can order some if you want to buy for service.
Any query, please contact Johnbull Farm Machine, we are a
professional supplier of farm machines in China.
|
|
