Quality comes from specialty,Value creates the future.
9 Years
| Ask Lasest Price | |
| Brand Name : | JOHNBULL |
| Model Number : | 4LZ-0.3 |
| Certification : | CE, ISO9001 |
| Price : | US$3680-3800.00/Set |
| Payment Terms : | T/T in advance |
| Supply Ability : | 8000 sets/month |
| Delivery Time : | 35 days after order |

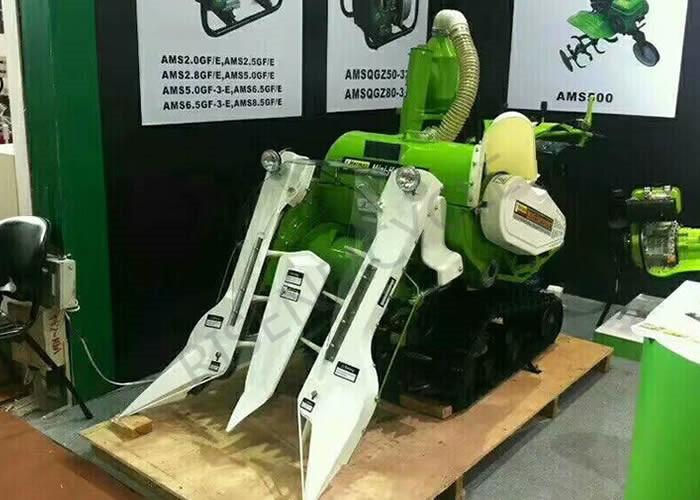

Mini Full Feeding Combine Harvester Self Walking 13Hp Diesel or
gasoline
Johnbull 4LZ-0.3 is mini full feeding harverster with only 180 kgs.
The machine has a seat for driver to save walking. Simple operation for both man and woman. Compact dimensions,
lightweight, easily controlled walking , flexible steering,
convenient maintenance, simple blockdown.
Strong suitablity for paddy and dry fields. suitable for both broad
fields in plains and small fields in southern fields.
3.Robust power, Strong slope climbility, alert crossing field
ridges.
Technical data:
| Product Name | Mini Crawler Combine Harvester |
| Machine Type | Full-Feeding, Self-Propelled |
| Brand | Johnbull |
| Model | 4LZ-0.3 |
| Feeding Volume | 0.3 L/s |
| Engine Model | SR177F gasoline or diesel SR180 |
| Rated Output(kW) | 5.6KW(13hp) |
| Rated Revolution(r/min) | 3600 |
| Fuel Consumption(Kg/hm2) | 1.8-2.2 |
| Clutch Type | Caterpillar Clutch |
| Harvest Range(m) | 0.8 |
| Harvest Line Number | 2 |
| Cut Stubble Height Range(mm) | 150-300 |
| Crope Height(mm) | 600-1200 |
| Lodging Adaptability | Inverse Cut≤65°, Obverse Cut≤75° |
| Total Loss(%) | Rice≤3.0 |
| Dockagesieve(%) | Wheat≤1.5 |
| Rice≤2.0 | |
| Percentage of Broken Grain(%) | ≤1.5 |
| Wheel Track(mm) | 340 |
| Minimun Ground Clearance(mm) | 118 |
| Working Performance Acres/Hour | 0.8-1.2 |
| Weight(Kg) | 180 |
| Package Dimensins(mm) | 2200×850×1100 |
| Packing | 5 sets/20'GP, 10 sets/40'GP |
What is your mini order? Can I buy a set to test first?
Yes. 1 set order is acceptable. We can send them in LCL. But full
container loader saves freight.
How to operate them?
It is very convenient to operate the machine. We have vedios if you
want, we have operation manual comes along with the machine.
What is the warranty?
24 months.
The structure is very compact, and it is maintenance free. We will
supply a few service parts. And customers need to buy along with
the machine for the service.
How to become a distributor in our country?
For a distributor, we need to know sales ability, service ability
and promotion channels. all start from order cooperation first.
|
|
